• Print ISSN: 2395 - 1400, Online ISSN: 2455 - 8923

Current Issues

Case Report

A rare case of Intraventricular Pneumocephalus
*Corresponding Author

Dr Prashanth Reddy CH
Post Graduate, Department of Radiology,
Kamineni Institute of Medical Sciences, Narketpally, Nalgonda District, Telangana State, India – 508254

Email:prashantreddy189@gmail.com

1Post graduate, 2Assistant Professor, 3Professor and Head, 4Senior Resident, Department of Radiology, Kamineni Institute of Medical Sciences, Narketpally, Nalgonda District, Telangana State, India.

Abstract

Pneumocephalus also called intracranial aerocele or pneumatocele is the presence of air in the subarachnoid pathways, ventricles or the brain substance. It occurs usually after trauma, however it can also be iatrogenic. Subdural and subarachnoid pneumocephalus are commonly seen following trauma, however intraventricular pneumocephalus is rare. We report a rare case of intraventricular pneumocephalus following skull trauma./p>

Key Words: Intraventricular pneumocephalus, Mount Fuji Sign.

Introduction

Pneumocephalus also called intracranial aerocele or pneumatocele is the presence of air in the subarachnoid pathways, ventricles or the brain substance. It is usually a post-traumatic phenomenon however it can also be iatrogenic. Tension pneumocephalus is usually used to describe air trapped under pressure in the intracranial space. Air enters the intracranial space after dural tears even without direct brain laceration. The air flows “upstream” along the normal CSF pathways. It is a serious complication and a neurosurgical emergency especially when associated with clinical and neurological deterioration. Pneumocephalus in addition places the patient at an increased risk for meningitis. We report a rare case of intraventricular pneumocephalus following head trauma.

Case report

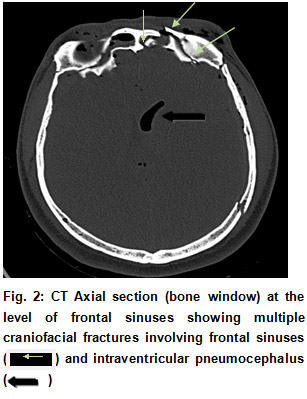

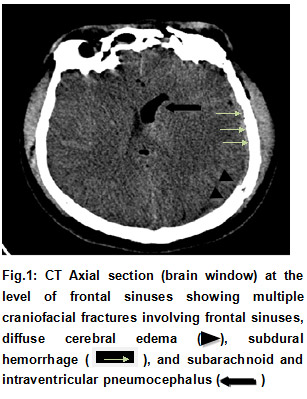

A 30yr old male was brought to emergency department in an unconscious state after sustaining head injury in a road traffic accident. On physical examination, his blood pressure was 90/60mm Hg and pulse rate was 100bpm.His pupils were sluggishly reacting to light. His Glasgow coma score (GCS) was 4. He was intubated and was subjected to Computerized Tomography (CT) scan of his brain. CT scan showed multiple craniofacial fractures involving paranasal sinuses (Fig.2: white arrows). In addition, CT scan also showed diffuse cerebral edema (Fig.1: arrow heads), diffuse subarachnoid hemorrhage, left temporo-parietal region subdural hemorrhage (Fig.1: white arrow) and subarachnoid and intraventricular pneumocephalus (Fig.1&2: black arrow).

The patient was kept on vasoconstrictors, mannitol and volume replacement. Inspite of all the possible measures, the patient died within half an hour.

Discussion

Pneumocephalus is abnormal presence of air in the cranial cavity. It could follow many conditions, commonest being head trauma, followed by surgical procedures of the head, tumors and infections.1,2

Rarely, it could develop in a scuba diver or spontaneously. Headache and altered consciousness are the common symptoms.3 In tension pneumocehalus there is accumulation of air under pressure resulting in mass effect on the neuroparenchyma. It is a neurosurgical emergency.4 Pneumocephalus can be diagnosed on plain X-ray however CT is the modality of choice.5 The air collection may be located in the extradural, subdural, subarachnoid, intraventricular, and intracerebral spaces. In cases of intraventricular pneumocephalus, fulminating, often fatal, intracranial sepsis may develop.


When pneumocephalus is suspected, CT scan play a vital role in determining the precise location of the gas collection, its relationship to the basal skull fracture site or air sinuses, whether the air bubbles are single or multiple , and the amount of mass effect on the brain. In case of tension pneumocephalus, bilateral subdural air collections cause compression and separation of the frontal lobes. The widened interhemispheric space between the frontal lobes resembles the profile of Mount Fuji in Japan - Mount Fuji sign.6 Pneumocephalus rarely needs surgical intervention except when it is associated with significant neurological deficit and supported with features of tension pneumocephalus. In suich cases emergent surgical open or endoscopic evacuation should be done. Small volumes of air (<2cc) are frequent in head injury and usually resolve without treatment. This case illustrates the importance of neuroimaging in making accurate diagnosis and localisation of pneumocephalus to offer adequate treatment. Early diagnosis and timely appropriate intervention will reduce morbidity and unnecessary mortality.

Conclusion

Intraventricular pneumocephalus is a rare occurrence following trauma. Early diagnosis and appropriate treatment are important to reduce morbidity and mortality.

References
  1. Yildiz A, Duce MN, Ozer C et al Disseminated pneumocephalus secondary to an unusual facial trauma. Eur J Radiol 2002;42:65–8
  2. Jenson MB, Adams HP. Pneumocephalus after air travel. Neurology 2004;63:400–1
  3. Kapoor T, Shetty P (2008) J Emerg Med 35:453–54.
  4. Satapathy GC, Dash HH. Tension pneumocephalus after neurosurgery in the supine position. Br J Anaesth 2000;84:115–17.
  5. Sharifabad MA, Gianatiempo C, Gharibshahi S. Pneumocephalus: a case report and review article. Int J Clin Pract 2007;61:74–6.
  6. Michel S J. Signs in imaging, The Mount Fuji Sign. Radiology 232, vol 2:449-50.
